User's Manual, - Chapter 8. Viewing Output [Node Time Series Graph]

8.2 Node Time Series Graph

Node time series graphs consist of a plot of parameters at a fixed point in the aquifer over the time period of simulation. To view a node graph, select Node Graph from the Windows menu. If the simulation is out of date with respect to the current input parameters, the user will be prompted to update it.

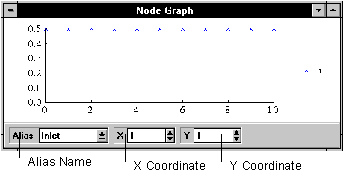

Figure 8.2 Node Profile Graph

Node graphs can display more than one parameter at a time. In order to add or remove a parameter from the graph, select the desired parameter from the Parameters menu..

To change the node location, the user can use the X and Y coordinate edit boxes, or select the node name form the alias list.
