User's Manual, - Chapter 6. Editing an Aquifer System [Setting Simulation Times]

6.1 Setting Simulation Times

To edit the starting and editing times of a simulation, select Aquifer Properties from the Window Menu, then select the form view of the window by selecting the button from the tool bar or selecting Form from the View menu. This will bring up the Aquifer Properties window as shown in Figure 6.1.

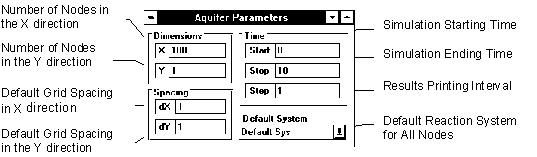

Figure 6.1 Aquifer Properties Window in Form View

The values of interest to be changed are the starting time, ending time, and printing time. Starting and ending times have no limits except for the ending time which must be greater than the starting time. The printing time is the time increment in which the simulation routine writes parameter profiles to intermediate files. A smaller print time will give a higher resolution in output with respect to time, at the cost of increased disk space usage. From this window the user can also edit the aquifer shape and size.
